General Electric WESDAC D20A Control Output Module Supplier,General Electric WESDAC D20A Control Output Module Manufacturer

Description

Sales Manager	E-mail	WhatsApp
Chloe	Plc@mvme.cn	+86 13030170117

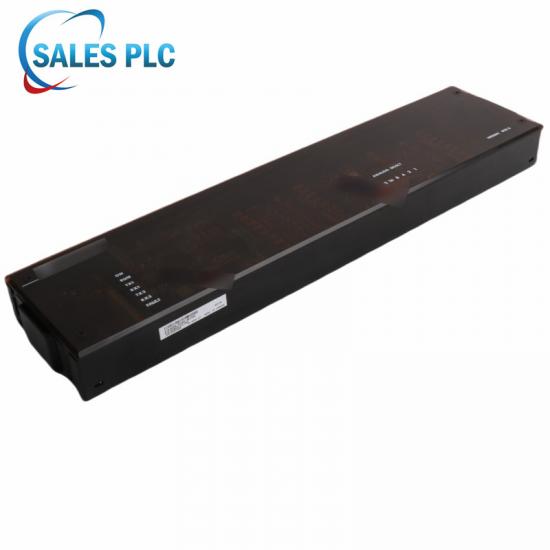

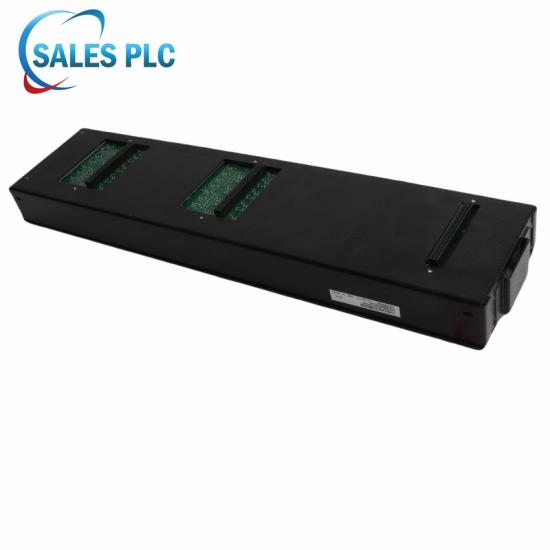

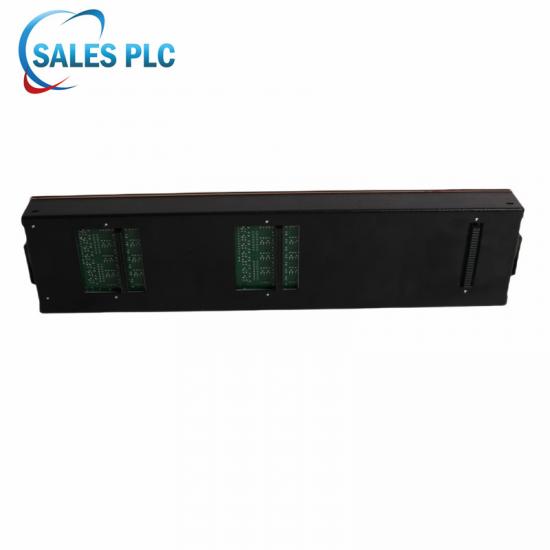

General Electric WESDAC D20A Control Output Module

Product Model:WESDAC D20A SBA0009-00

Product Parameters:Panel Module

Estimated Shipping Size:25.7x17.3x7.8cm

weight:0.55 kg

LOGIC PANEL

ANALOG SELECT

INPUT MODULE

Supply Voltage: 24 V DC

Operating Temperature: Ty 0°C to 60°C

Processor: 8 bit Freescale 68HC11 MPU

Clock: 2 MHz MPU clock

Memory: 32 KB EPROM

24 KB static RAM

512 bytes EEPROM

Inputs 32 differential inputs (typical):

±5, ±10 V

±1, ±2.5, ±5, ±10, ±20 mA

Input Impedance: 44 Mohm ±5% (VDC)

Overall Accuracy: ±0.05% (voltage), ±0.1% (current)

Temperature Coefficient: ±10 ppm per °C

Resolution: 14 bit plus sign

Conversion Rate (all32 inputs)

550 ms @ 60 Hz

656 ms @ 50 Hz

Over voltage Rating: 35 VDC

Overload Rating: 200 V pp ±5 V input common mode (50/60 Hz)

About the WESDAC D20A

The D20 Analog module is composed of two detachable modules, WESTERM D20 A and WESDAC D20 A.The bottom module, WESTERM D20 A, is where all field wirings are terminated. The top module, WESDAC D20 A, processes the data acquired and communicates this to the main D20 processor.
