GE IC695ALG608 Input Module Supplier,GE IC695ALG608 Input Module Manufacturer

Description

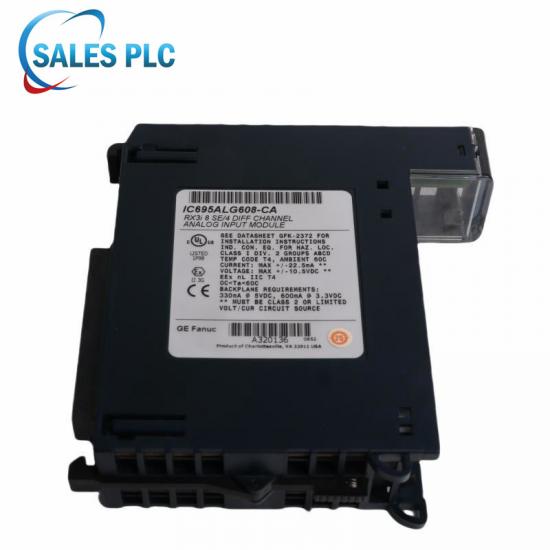

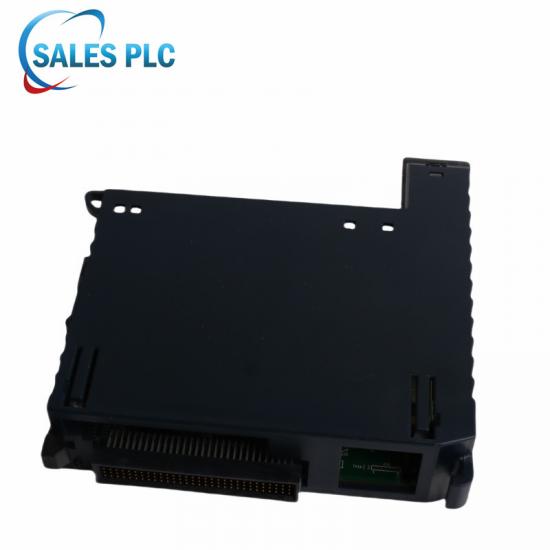

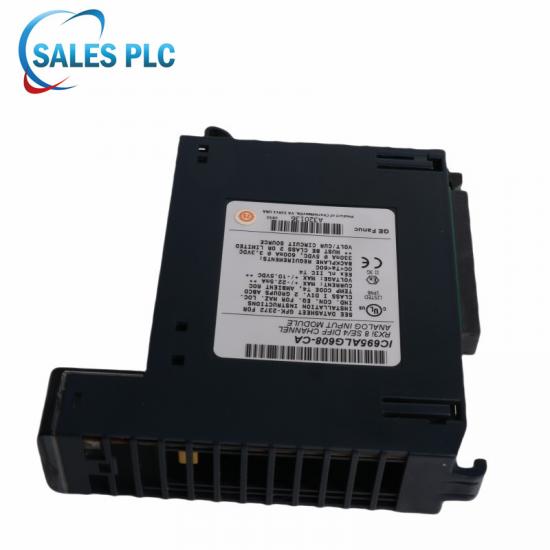

GE IC695ALG608 Input Module

Brand:GE Fanuc
Series:PACSystem RX3i
Part Number:IC695ALG608
Product Description :Non-isolated analog input module
Series:PACSystem RX7i
Module Type:Analog Input
No of Channels:Eight (8) non-isolated, single-ended; Four (4) non-isolated, differential
Number of Inputs:8 single-ended or 4 differential input channels
Input signals, Current:0-20 mA; 4-20 mA; +/-20 mA;
Product Description :Analog input module
Current Range:0-20 mA, 4-20 mA, +/-20 mA

Lily is always online to serve you

Sales Manager: Lily
Email	WhatsApp	Skype	Wechat
plc@mvme.cn	+86 18030170117	+86 18030170117	plcnew

About the GE IC695ALG608 Input Module

The IC695ALG608 is an analog input module from the PACsystem RX3i platform. This module is able to provide up to Eight (8) input channels when configured for single-ended wiring and Four (4) input channels for differential input wiring.

It supports a variety of input signals such as +/-10 VDC, 0-10 VDC, +/- 5VDC, 0-5 VDC, 1-5 VDC and 0-20 mA, 4-20 mA and +/- 20mA input signals with built-in 24-bit Analog to Digital Converter (ADC) that translates received analog data to either integer or floating point data.

The IC695ALG608 is installed to an RX3i universal backplane. It occupies a single slot of the rack with current draw 330 mA maximum @ 5.0V +5% / -2.5% and 600 mA maximum @ 3.3V +5% / -3%. This module is used with an RX3i Central Processing Unit (CPU) firmware version 3.0 or later and configured using Machine Edition version 5.0 SP3 and later. Available filter options for each input channel includes 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz which are mainly used to normalize analog readings and eliminate rapid fluctuations.
