The Economy plus version extends the existing PROFIBUS Bus Coupler series BK3xx0. The K-bus extension technology allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler. The BK3120 has been designed to accommodate requirements. The PROFIBUS protocols omit FMS operation in order to be able to transfer more user data in DP mode.
Product Status

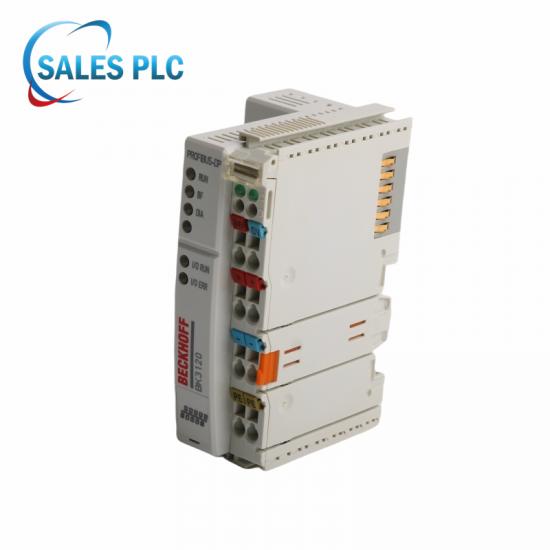

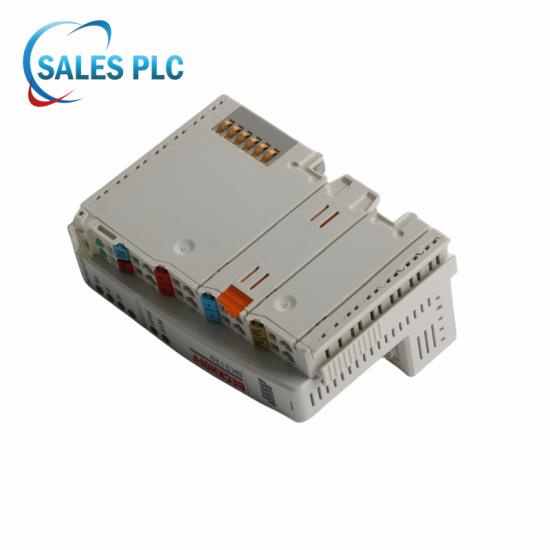

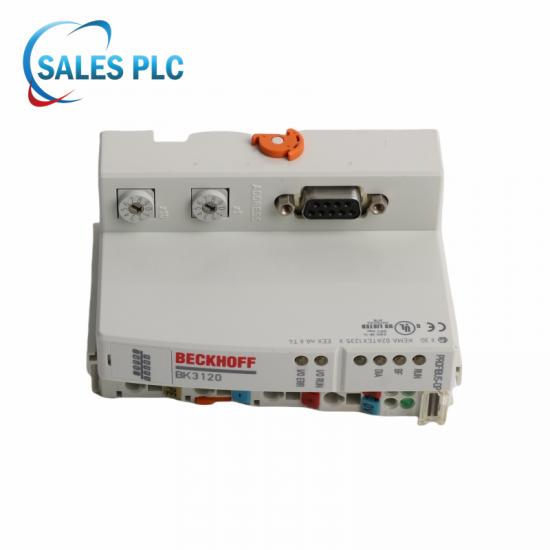

Original New // Ready in Stock // Same Days ShippingBECKHOFF BK3120 Bus Coupler Specification
|
Brand |
BECKHOFF |
|
Model |
BK3120 |
|
Number of Bus Terminals |
64 (255 with K-bus extension) |
|
Max. Number of Bytes Fieldbus |
128 byte input and 128 byte output |
|
Data Transfer Rates |
Automatic detection up to 12 Mbaud |
|
Bus Interface |
1 x D-sub 9-pin socket with shielding |
|
Data Transfer Medium |
Shielded copper cable, 2 x 0.25 mm² |
|
Power Supply |
24 V DC (-15%/+20%) |
|
Input Current |
70 mA + (total K-bus current)/4, 500 mA max. |
|
Current Supply K-bus |
1750 mA |
|
Power Contacts |
Max. 24 V DC / Max. 10 A |
|
Electrical Isolation |
500 V (power contact/supply voltage/fieldbus) |
|
Weight |
0.2kg |
|
Dimensions |
5x6.8x9.8cm |
|
Relative Humidity |
95%, no condensation |
|
Vibration/Shock Resistance |
Conforms to EN 60068-2-6 / EN 60068-2-27 |
|
EMC Immunity/Emission |
Conforms to EN 61000-6-2 / EN 61000-6-4 |
|
Protection Rating/Installation Position |
IP20 / Variable |
Contact us to discover the discounted prices.
Sales Manager: King
:plc@mvme.cn
:+86 18030170117
:+86 18030170117
:plcnew
BECKHOFF BK3120 Bus Coupler Description
The Economy Plus version expands the existing PROFIBUS Bus Coupler series BK3xx0, offering enhanced performance and flexibility. Utilizing K-bus extension technology, it supports the connection of up to 255 spatially distributed Bus Terminals to a single Bus Coupler. Designed to meet modern requirements, the BK3120 focuses on optimizing data transfer in DP mode, omitting FMS operation to achieve a higher capacity of 128 bytes for both input and output data.
The BK3120 also supports PROFIBUS DP V1 services, enabling direct access to Bus Coupler registers and complex Bus Terminals. This allows advanced functions such as parameterization adjustments and setting/correcting limit values for analog Bus Terminals.
With automatic baud rate detection of up to 12 Mbaud, the Bus Coupler can dynamically adapt transmission speeds to suit the specific needs of the technical process, ensuring efficient and reliable communication.
